Installer bootstrapping with Burn (WiX bootstrapper)

What is Burn?

Burn is a bootstrapper to chain the installations of MSI installers. It is part of WiX toolset. One of the reasons you might need a bootstrapper is to chain your software prerequisites or dependency installations such as a particular version of .NET Framework.

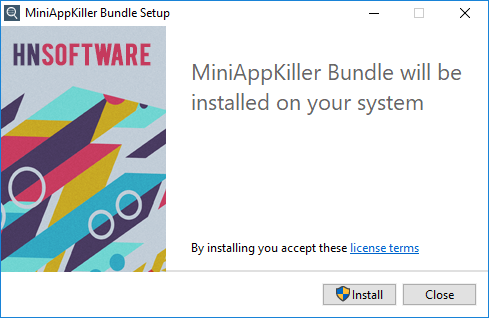

Example screenshot of my setup.exe

Bootstrapper dialog UI
Bootstrapper dialog UI

Example of my project structure

This is how my project structure looked like in preparing to create a bootstrapper.

<root>
├── bootstrapper_res\
|   ├── banner.png
|   ├── ClassicTheme.wxl
|   └── ClassicTheme.xml
├── prereq\
|   └── NDP471-KB4033344-Web.exe
├── Bootstrapper.wxs
├── MakeBootstrapper.bat
├── myAppSetup.msi
├── ...

Folders:

  • bootstrapper_res - Contains graphic resource and theme files for my WiX bootstrapper UI
  • prereq - Contains necessary prerequisites to be bundled into my bootstrapper

WiX project files:

  • Bootstrapper.wxs - Main file for generating the bootstrapper (*.exe file)
  • MakeBootstrapper.bat - Batch script to compile Bootstrapper.wxs file
  • myAppSetup.msi - Example of .msi installer file for my app installation
  • banner.png, ClassicTheme.wxl & ClassicTheme.xml - Modified theme for customizing the bootstrapper interface (source code available on GitHub)

Example of my primary WiX project file

Below is the script that I used to create my bootstrapper to bundle the installation packages:

File name: Bootstrapper.wxs

<Wix
    xmlns="http://schemas.microsoft.com/wix/2006/wi"
    xmlns:bal="http://schemas.microsoft.com/wix/BalExtension"
    xmlns:util="http://schemas.microsoft.com/wix/UtilExtension">
    <Bundle Name="MiniAppKiller Bundle"
        Version="!(bind.packageVersion.MainPackage)"
        Manufacturer="Heiswayi Nrird"
        UpgradeCode="56888B11-D5D0-4068-8E94-39E696DAD1D4"
        Copyright="(C) 2018 Heiswayi Nrird"
        IconSourceFile="images/app.ico"
        AboutUrl="https://heiswayi.nrird.com"
        Compressed="yes">

        <!-- Layout setup -->
        <BootstrapperApplicationRef Id="WixStandardBootstrapperApplication.HyperlinkLicense">
            <bal:WixStandardBootstrapperApplication
                LicenseUrl="https://heiswayi.nrird.com"
                LogoFile="bootstrapper_res/banner.png"
                ThemeFile="bootstrapper_res/ClassicTheme.xml"
                LocalizationFile="bootstrapper_res/ClassicTheme.wxl"
                LicenseFile="app\Eula-en.rtf"
                SuppressOptionsUI="yes" />
        </BootstrapperApplicationRef>

        <util:RegistrySearch Root="HKLM"
            Key="SOFTWARE\Microsoft\Net Framework Setup\NDP\v4\Full"
            Value="Version"
            Variable="Net4FullVersion" />
        <util:RegistrySearch Root="HKLM"
            Key="SOFTWARE\Microsoft\Net Framework Setup\NDP\v4\Full"
            Value="Version"
            Variable="Net4x64FullVersion"
            Win64="yes" />

        <Chain DisableSystemRestore="yes">
            <ExePackage Id="Net471"
                Name="Microsoft .NET Framework 4.7.1 Web Installer"
                Cache="no"
                Compressed="yes"
                PerMachine="yes"
                Permanent="yes"
                Vital="yes"
                InstallCommand="/passive /norestart"
                SourceFile="prereq\NDP471-KB4033344-Web.exe"
                DetectCondition="(Net4FullVersion = &quot;4.7.2558&quot;) AND (NOT VersionNT64 OR (Net4x64FullVersion = &quot;4.7.2558&quot;))"
                InstallCondition="(VersionNT >= v6.0 OR VersionNT64 >= v6.0) AND (NOT (Net4FullVersion = &quot;4.7.2558&quot; OR Net4x64FullVersion = &quot;4.7.2558&quot;))"/>
            <RollbackBoundary />
            <MsiPackage Id="MainPackage"
                SourceFile="setup-1.0.msi"
                DisplayInternalUI="yes"
                Compressed="yes"
                Vital="yes"/>
        </Chain>
    </Bundle>
</Wix>

For more detailed on other available element properties, you can read on WiX Bundle Element documentation here.

Creating a batch script to compile the WiX project files

These are the WiX toolset that I used in the batch script to compile the WiX project files:

  • candle.exe - To generate *.wixobj file
  • light.exe - To compile *.wixobj and generate the bootstrapper file (*.exe).

File name: MakeBootstrapper.bat

@echo off
"%WIX%bin\candle.exe" "Bootstrapper.wxs" -out "_Bootstrapper.wixobj" -ext WixNetFxExtension -ext WixBalExtension -ext WixUtilExtension -nologo
"%WIX%bin\light.exe" "_Bootstrapper.wixobj" -out "Bootstrapper.exe" -ext WixNetFxExtension -ext WixBalExtension -ext WixUtilExtension -nologo

Example screenshots of my custom bootstrapper dialogs

Bootstrapper installing the packages
Bootstrapper installing the packages
When user cancelled the installation
When user cancelled the installation
